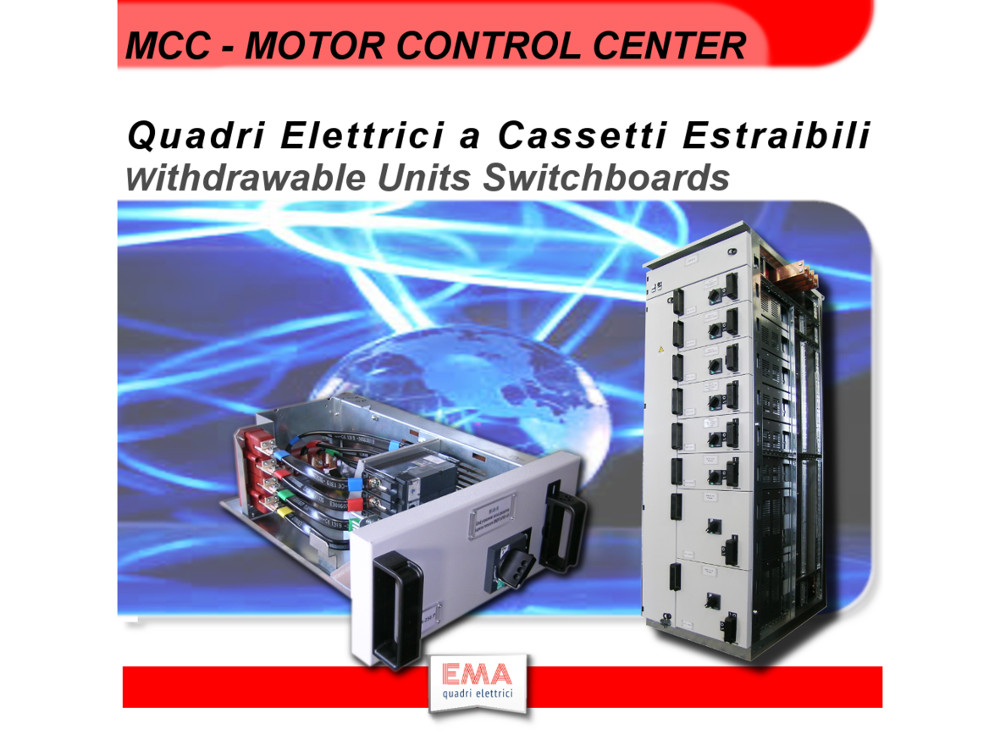

MCC - with drawable units
GENERAL INFORMATION
Rated Voltage
up to a 690V
Rated insulation voltage
up to 1000V
Impulse withstand voltage
12 kV
Power frequency voltage test for 1 minute
power circuits (max)
3,5 kV
auxiliary circuits (max)
2,5 kV
Rated frequency
50-60 Hz
Rated short-time withstand current (1s)
up to 50 kA
Rated peak current
up to 165 kA
Busbars rated current
up to 2000 A
Degree of protection
with opened doors
IP20
with closed doors
up to IP55
standard Structural form
3B, 4A, 4B
Ambient temperature
-5°C + 40°C
Humidity max
50% at 40°C
Accessibility front and rear accessibility or only with front accessibility
(In the back to back version without rear accessibility, the busbars have a mechanical system for screws locking)
